Tyneham heat pump 14-18kW
Tyneham heat pump 26-32kW
Tyneham heat pump 50-70kW

Commercial air source heat pump for low carbon heating with inverter compressor and R32 refrigerant.

Available in 6 models with outputs of 14, 18, 26, 32, 50 and 70kW. Cascade to achieve higher outputs.

R32 Refrigerant icon
Warranty 5 years icon
A+++ icon
as low as 84 dB(A)
COP 4.85 icon

Product information

    • Commercial monobloc air source heat pump
    • Single unit with the refrigeration cycle contained within the outdoor unit
    • Inverter controlled compressor to accurately match the heat demand
    • Low global warming potential due to the use of R32 refrigerant
    • Highly efficient with co-efficiency of performance (COP) rating up to 4.85
    • Light and compact unit for ease of installation and delivery
    • Suited to larger installations - cascade systems to achieve higher output
    • 2-year warranty (extended to 5 years if commissioned by Hamworthy)*
    • Back up and long-term support from our team of experienced engineers across the UK
    • Combine with Hamworthy modular boilers for a hybrid heating system

    *Terms and conditions apply

Technical data

Units 14kW 3 PH
Heat Pump Space Heating [35°C] ErP rating A+++
Heat Pump Space Heating [35°C] SCOP 4.48
Heat Pump Space Heating [55°C] ErP rating A++
Heat Pump Space Heating [55°C] SCOP 3.31
Heating (A7/W35) Capacity (kW) 14.1
Heating (A7/W35) Power Input (kW) 2.91
Heating (A7/W35) COP 4.85
Air Temperature Range (C) Min/Max (-20 +40)
Sound Data Outdoor unit / Indoor unit Power Level dB(A)** 68
Primary Flow Rate (l/Sec) 0.65
Pipework Connection Sizes Heating Flow 1"
Pipework Connection Sizes Heating Return 1"
Weight Kg 136
Electrical Supply 415
Phase Three
Max Running Current 9.7
Fuse Rating 25
Refrigerant Charge R32 Kg 3.2
Dimensions Outdoor Unit
Width mm 1044
Depth mm 455
Height mm 1409

Downloads

Tyneham Range Brochure

Product brochures 2994 kb

Hi-T2 Tyneham heat pump control installation manual

Installers guides 5644 kb

Navistem T3100 Tyneham heat pump control installation manual

Installers guides 7584 kb

Tyneham Buffer Tank 500L, 900L & 1500L installation manual

Installers guides 1201 kb

Tyneham backup immersion heater installation manual

Installers guides 2234 kb

Tyneham heat pump 14-18 kW installation manual

Installers guides 3457 kb

Tyneham heat pump 26-32 kW installation manual

Installers guides 3284 kb

Tyneham heat pump 50-70 kW installation manual

Installers guides 4104 kb

A Heat pump - one buffer tank & one central heating circuit (constant temperature)

Hydraulic schematics 83 kb

B Heat pump - one buffer tank & one central heating circuit (constant temperature), managed by LPB bus or 0-10v signal

Hydraulic schematics 85 kb

C Heat pump - one buffer tank & up to 3 central heating circuits with mixer valve & circuit sensor (variable temperature)

Hydraulic schematics 84 kb

D Heat pump - cascade one buffer tank & 1 central heating circuits with mixer valve & circuit sensor (regulated temperature)

Hydraulic schematics 117 kb

E Heat pump - one buffer tank & one central heating circuit with one boiler in hybrid set up

Hydraulic schematics 149 kb

Tyneham Monobloc Air Source Heat Pump 14kW and 18kW

CAD 1733 kb

Tyneham Monobloc Air Source Heat Pump 26kW

CAD 1893 kb

Tyneham Monobloc Air Source Heat Pump 32kW

CAD 1897 kb

Tyneham Monobloc Air Source Heat Pump 50kW and 70kW

CAD 1771 kb

Buffer tank - Tech Submittal Sheet

362 kb

Tyneham Technical Submittal Sheets 14 & 18kW

540 kb

Tyneham Technical Submittal Sheets 26 & 32kW

181 kb

Tyneham Technical Submittal Sheets 50 & 70kW

224 kb

Ideal uses/applications

New build and retrofit commercial projects

Large commercial and public buildings including schoolshospitals and hotels.

Medium sized commercial and public buildings including schoolshospitalsoffices and hotels.

Optional extras

  • Flexible hoses
  • Anti-vibration rubber feet
  • Wall-mounted brackets (14-18kW only)
  • External controls (required)
  • Anti-corrosion models - special coating for installations close to the sea (standard on 14-18kW, options on 24-70kW models)
  • Ducted model for installation inside a building (50 & 70kW models only)
  • Single phase (14kW only)

Often bought with

Wessex ModuMax mk3 boiler

Learn more

Stratton mk3 wall hung boiler

Learn more

Case studies

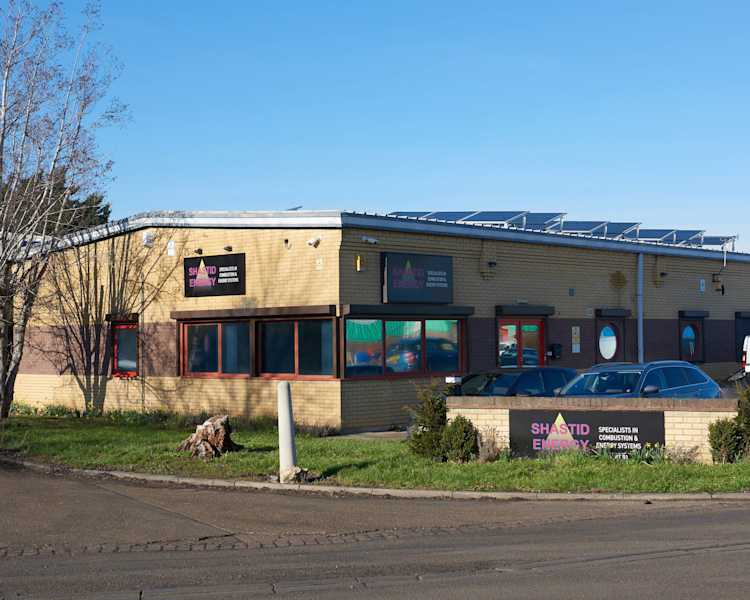

An efficient and low carbon heating solution
